Product Details
Extreme™ 570W Solar Charging System by Go Power®. The Solar Extreme is Go Power!'s largest solar and inverter system on the market. This system will produce enough power to run up to 3000 watts of appliances or electronics at a time and depending on your exposure to the sun, top up your battery bank at a rate of 27 amps per hour. The Solar Elite also includes a 3000-watt Inverter Charger, an all-in-one unit that combines 3000 watts of pure sine wave AC power with a built-in battery charger and transfer switch. This package provides you charging flexibility between the sun and shore power, as well as the ability to connect power to your 120-volt outlets. A SOLAR EXTREME system will provide you with all of the comforts of home and allow you to be truly 'off the grid'.
Specifications:
| Solar Panel Size: 59.1" x 26.3" |
Features:
- High quality at an affordable price
- Expertly made from premium materials
- Built to match your exact requirements

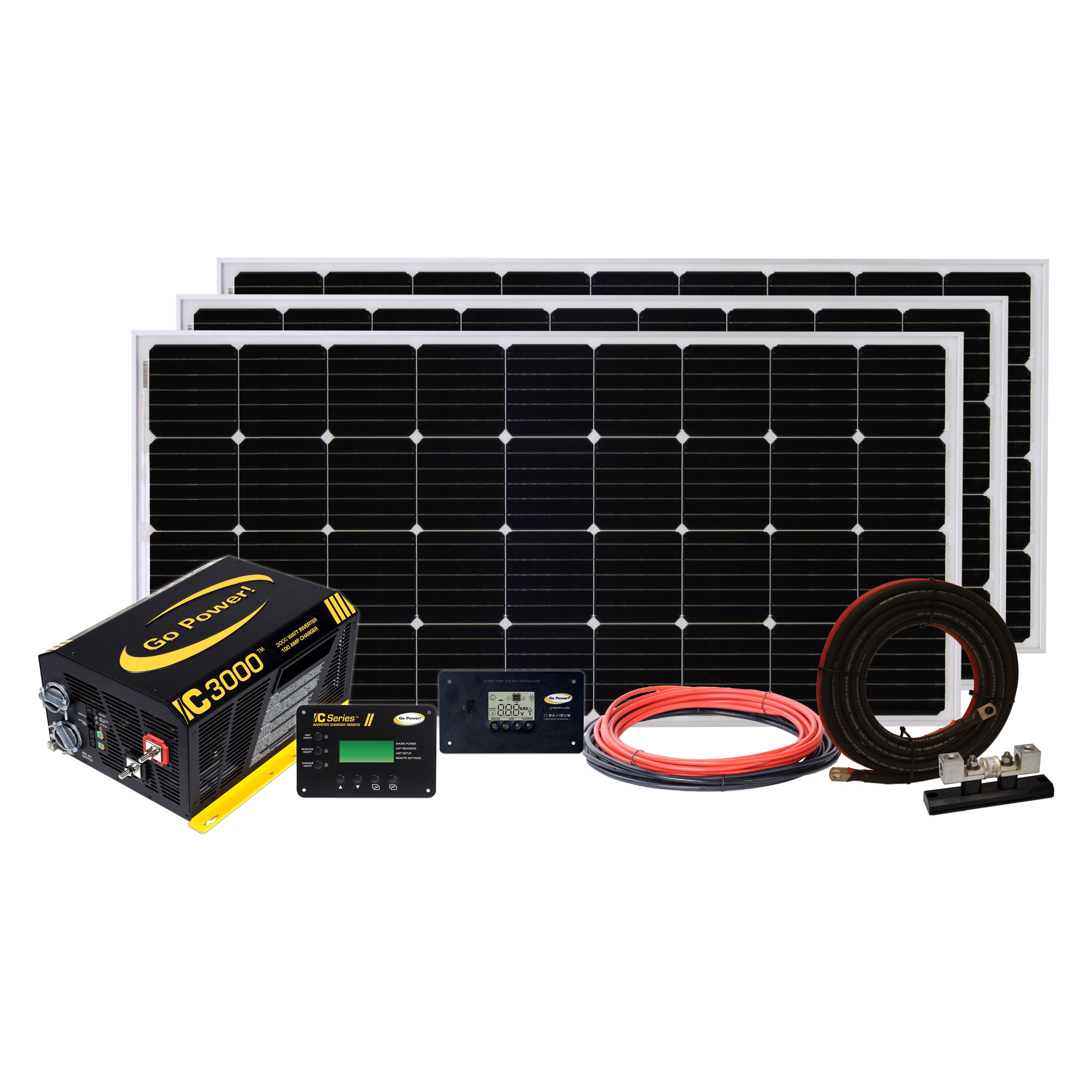

Includes:
- 190-watt solar charging kit + 2 x 190-watt expansion kits (OVERLANDER + 2x OVERLANDER-E)

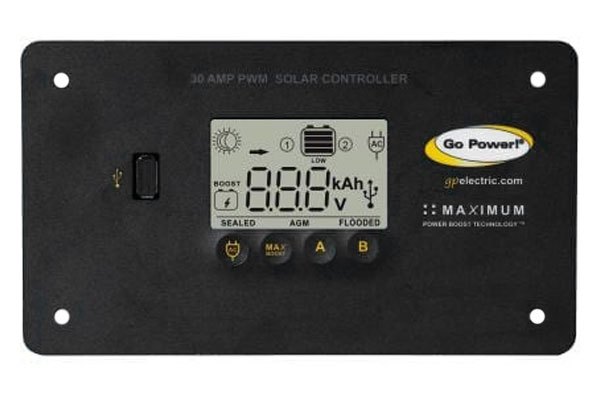

- 30-amp dual-bank, Bluetooth® PWM Solar Controller (GP-PWM-30-UL)

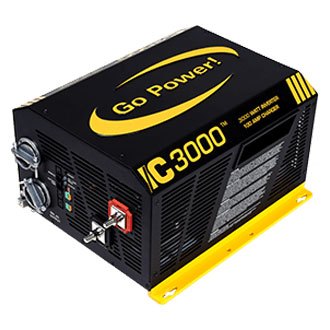

- 3000-watt industrial pure sine wave inverter charger for AC power (GP-IC3000-12)
- IC Series Inverter Charger Remote and 50' of cable (GP-ICR-50)
- DC inverter install kit (GP-DC-KIT5)
- 1 x 25' of MC4 output cable (#10) red & 1 x 25' of MC4 output cable (#10) black and all mounting hardware (1 x GP-MH-4-KB)
Specifications
Complete Solar + Inverter System Comparison
- Output power:570 W / 27.9A
- Inverter power: 3000 W
- Solar controller: 30 A, PWM
- Smart Converter Charger: 125 A
- Inverter remote: On/off, LED monitoring
- Transfer switch: 100 A (2x50A Legs)

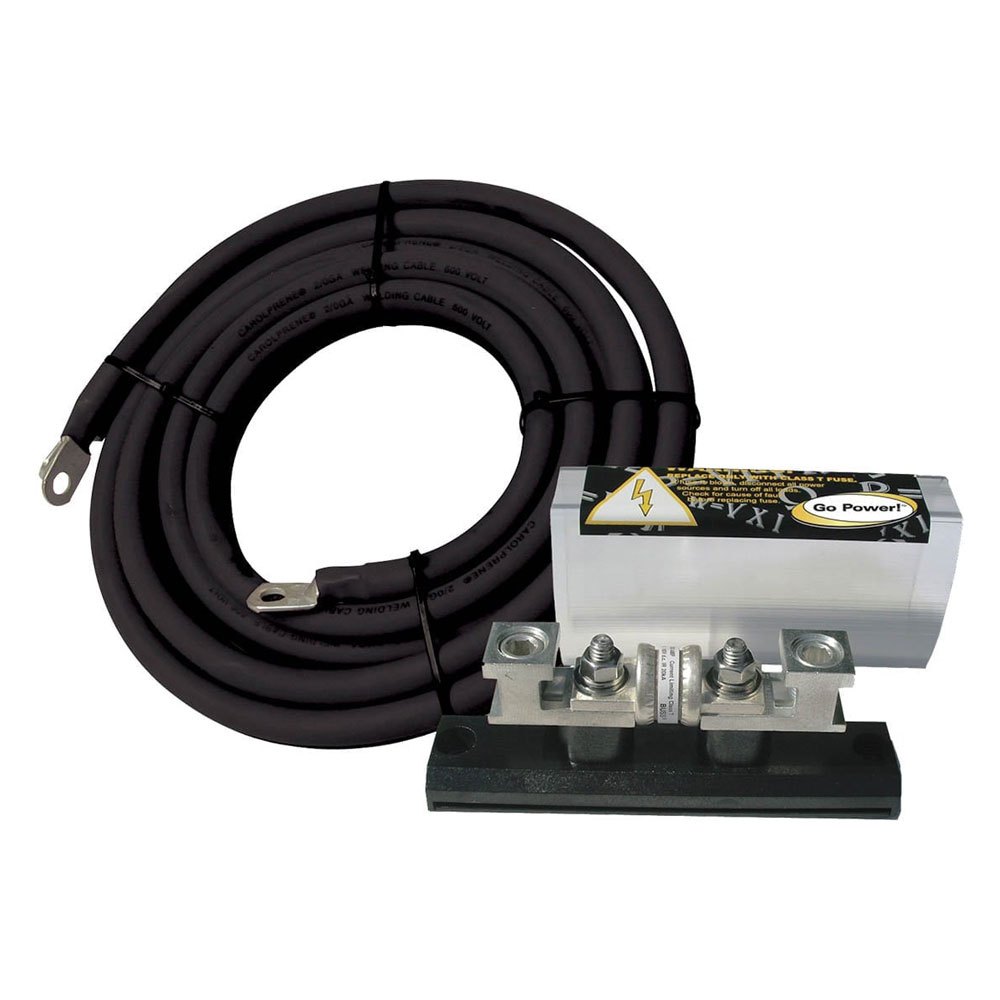

- Inverter Fuse and Cable Kit: 400 A fuse, 4/0 cable
Solar Modules and Controller
- Solar cell type: Monocrystalline
- Output power: 190W
- Rated current: 9.3A
- Rated DC voltage: 19.1V
- Open-circuit voltage: 22.5V
- Module efficiency: 16.4%
- Connectivity: MC4 connectors
- Solar controller: 30 A PWM, multi battery option, 4 stage charging, digital display and flush mount, dual bank with USB
- Frame type: Clear anodized aluminum frame
- Certifications: CE
- Dimensions: 59.06" x 26.3" x 1.59" / 1500.12 x 668.02 x 40.38 mm
- Weight: 26.4 lbs / 12 kg.
Inverter Charger Specifications
- Output Power (up to 40°C): 3000W
- Surge Power (100 milliseconds): 6000W
- Surge Power (5 seconds): 4800W
- Peak Output Current: 52A
- Continuous Output Current: 25A
- Output Voltage: 115 VAC
- Output Frequency: 60 Hz ± 0.1Hz
- Output Waveform: Pure Sine Wave
- Efficiency (Peak): 90%
- DC Input Voltage Range: 9 -17 VDC
- Maximum Continuous DC Input Current: 283 ADC
- No Load Power Consumption: Normal Mode:25W, Sleep Mode: 5W
- AC Connections: Split Phase In/Dual Out, Dual In/ Dual Out
Smart Converter Specifications
- Input Voltage Nominal: 120 VAC
- Input Voltage Range: 80 - 140VAC
- Input Current: 18A
- Input Power Factor Correction: 0.97 typical
- Optimal Efficiency: >85%
- Charge Control: 3 stage with manual equalize
- Output Voltage: 5-16 VDC
- Output Current: 125A
- Change Temperature Compensation: Remote Battery Sensor
As one of the most trusted names in solar technology, Go Power® has earned a reputation for delivering strong and effective products for industrial applications worldwide. Industry proven to perform reliably in some of the world's harshest environments, Go Power solar LED lights and solar power systems provide a durable, dependable and cost effective energy alternative. Go Power is a publicly traded company, with common shares listed on the Toronto Stock Exchange under the symbol "CMH". Go Power specializes in self-contained solar LED lighting and solar power solutions within these markets: Outdoor Lighting, Aviation, Obstruction, Marine, Traffic, Solar EPC Services, Go Power! / Mobile.
