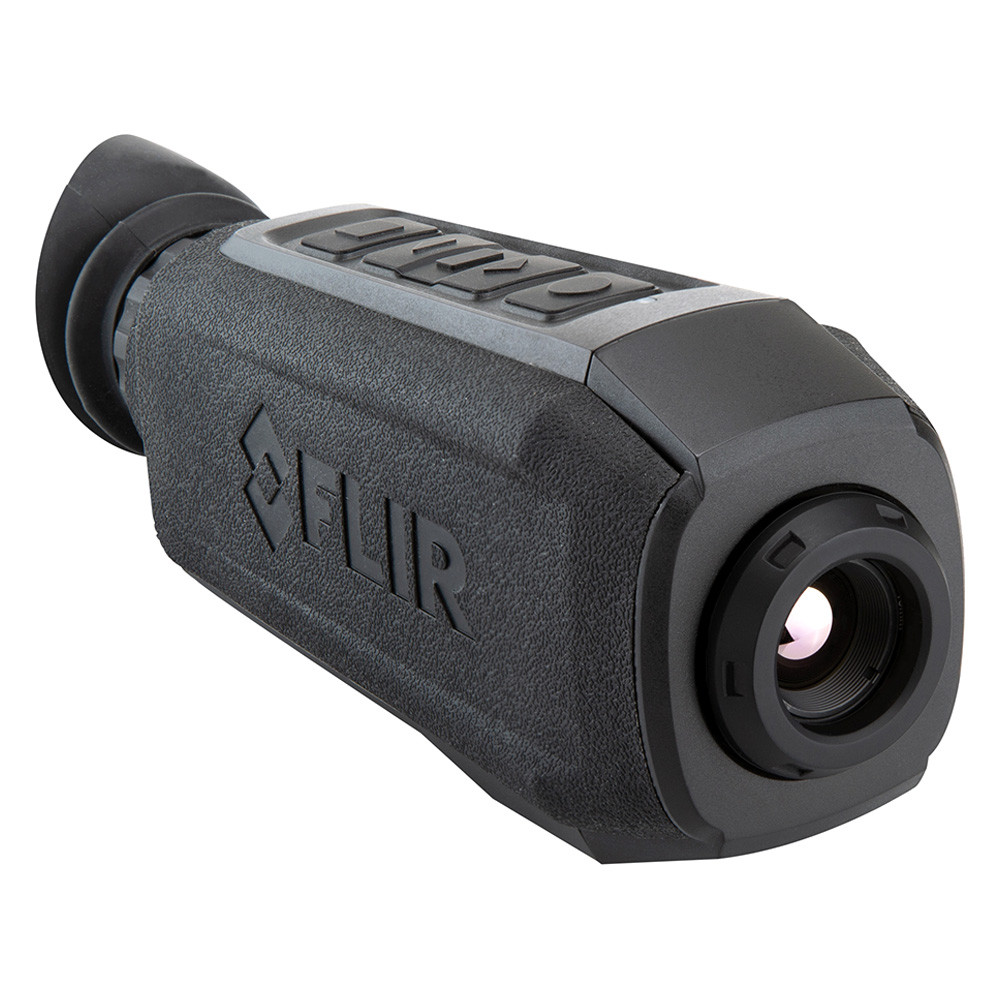

FLIR® - Scion PTM166 Handheld Thermal Camera

0 reviews|Item # 4699256181|Similar Products
$3,492.70
DISCONTINUED - Item No Longer Available
Authorized Dealer
Have a Question? Ask a Specialist
888.453.5150Live Chat

Product Details

Scion PTM166 Handheld Thermal Camera by FLIR®. Featuring a rugged thermal monocular with a resolution of 640 x 512 and 60 Hz refresh rate, that is capable of geotagged video recording and live video transmission. It can instantly stream encrypted thermal footage of any pursuit, evidence recovery, or search and rescue effort to the command center via a wireless network.

Specifications

Core Technology: BOSON 12 μm VOx Microbolometer
Detector Resolution: 640 x 512
Refresh Rate: 60 Hz
Lens System: 14 mm
Field of View: 32 x 24°
Optical Magnification: 0.7x
Digital Zoom: 1X, 2X, 4X, 8X
Video Recording: Yes
Image Capturing: Yes
Internal Memory: 2 GB internal storage
Focus: infinite
Eye Relief: 16 mm
Display: Quad-VGA (1280 x 960) high definition display
Display Focus: Manual
Temperature Imaging Modes (Thermal Palettes): White hot, black hot, iron bow, rainbow, graded fire, lava
Dimensions: 9 x 3 x 2.4" (227 x 76.8 x 60.5 mm)
Weight: Without batteries: 0.99 lb (452 g). With batteries: 1.26 lbs (572 g)

Features

  • Engineered to high standards
  • High-grade design delivers extended lifespan
  • Made with premium materials

Built to equip law enforcement professionals with superior thermal surveillance, the Scion™ PTM packs high-performance thermal imaging and FLIR TruWITNESS® compatibility into a rugged, IP67-rated handheld monocular. Capable of geotagged video recording and live video transmission, the Scion PTM can instantly stream encrypted thermal footage of any pursuit, evidence recovery, or search and rescue effort to the command center via wireless network. A smooth 60 Hz refresh rate and picture-in-picture zoom capture minute details from a distance and maintain peripheral awareness for constant thermal supervision of suspects, team members, and standbys.

Live Encrypted Video Streaming
Securely stream real-time thermal video to the command center via networked devices. Pairing the Scion PTM with FLIR's innovative TruWITNESS® platform links powerful thermal imaging with other smart sensors on the ground, in the air, and everywhere in-between, providing enhanced situational awareness and real-time centralized information for public safety agencies.

Rich User Interface
The full-featured Scion PTM packs onboard recording, picture-in-picture zoom, and intuitive controls into a rugged thermal optic. Polished internal menus allow rapid switching between six different thermal palettes and provide easy access to advanced features. GPS geotagging, onboard recording, and expandable microSD™ storage offer superb evidence review options while a rugged, IP67-rated housing protects key components in vital situations.

Superior Thermal Detection
Sharp, 60 Hz thermal imaging powered by FLIR's breakthrough Boson® thermal core. FLIR outfits law enforcement professionals with tools to counter unseen threats. Able to perform at any time of day, thermal imaging pierces complete darkness, glaring light, and lingering haze to provide superior awareness in difficult conditions. The advanced image processing of FLIR's Boson® thermal core paired with a 60 Hz image refresh rate provide smooth, unwavering vision in challenging environments.

FLIR® designs, develops, manufactures, markets, and distributes technologies that enhance perception and awareness. They bring innovative sensing solutions into daily life through their thermal imaging systems, visible-light imaging systems, locator systems, measurement and diagnostic systems, and advanced threat detection systems. FLIR's products improve the way people interact with the world around them, enhance public safety and well-being, increase energy efficiency, and enable healthy and entertained communities.
